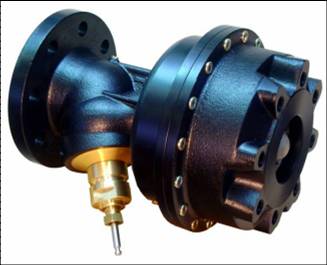

KTM 512

Регулятор расхода и температуры с возможностью присоединения привода

С равнопроцентной характеристикой.

Адаптеры для приводов TA Hydronic Control, Siemens, Honeywell, Sauter, t.a.c. и других.

• Регулятор расхода

  артикул	примечание	DN	Kvs
  52 756 220	Fc = 12 kPa, PN 25	15/20	4,1
  52 756 225	Fc = 12 kPa, PN 25	25/32	16
  52 756 240	Fc = 12 kPa, PN 25	40/50	35
  52 756 265	Fc = 12 kPa, PN 25	65	70
  52 756 280	Fc = 12 kPa, PN 25	80	70
  52 756 290	Fc = 12 kPa, PN 25	100	150
  52 756 291		125	150
  52 756 020	Fc = 20 kPa, PN 25	15/20	4,1
  52 756 025	Fc = 20 kPa, PN 25	25/32	16
  52 756 040	Fc = 20 kPa, PN 25	40/50	35
  52 756 065	Fc = 20 kPa, PN 25	65	70
  52 756 080	Fc = 20 kPa, PN 25	80	70
  52 756 090	Fc = 20 kPa, PN 25	100	150
  52 756 091	Fc = 20 kPa, PN 25	125	150
  52 756 420	Fc = 40 kPa, PN 25	15/20	4,1
  52 756 425	Fc = 40 kPa, PN 25	25/32	16
  52 756 440	Fc = 40 kPa, PN 25	40/50	35
  52 756 465	Fc = 40 kPa, PN 25	65	70
  52 756 480	Fc = 40 kPa, PN 25	80	70
  52 756 490	Fc = 40 kPa, PN 25	100	150
  52 756 491	Fc = 40 kPa, PN 25	125	150
  52 786 290	Fc = 12 kPa, PN 16	100	150
  52 786 291	Fc = 12 kPa, PN 16	125	150
  52 786 090	Fc = 20 kPa, PN 16	100	150
  52 786 091	Fc = 20 kPa, PN 16	125	150
  52 786 490	Fc = 40 kPa, PN 16	100	150
  52 786 491	Fc = 40 kPa, PN 16	125	150
  52 796 220	Fc = 12 kPa, PN 25, with test points	15/20
  52 796 225	Fc = 12 kPa, PN 25, with test points	25/32
  52 796 240	Fc = 12 kPa, PN 25, with test points	40/50
  52 796 265	Fc = 12 kPa, PN 25, with test points	65
  52 796 280	Fc = 12 kPa, PN 25, with test points	80
  52 796 280	Fc = 12 kPa, PN 25, with test points	80
  52 796 290	Fc = 12 kPa, PN 25, with test points	100
  52 796 291	Fc = 12 kPa, PN 25, with pressure test points	125
  52 796 020	Fc = 20 kPa, PN 25, with pressure test points	15/20
  52 796 025	Fc = 20 kPa, PN 25, with pressure test points	25/32
  52 796 040	Fc = 20 kPa, PN 25, with pressure test points	40/50
  52 796 065	Fc = 20 kPa, PN 25, with pressure test points	65
  52 796 080	Fc = 20 kPa, PN 25, with pressure test points	80
  52 796 090	Fc = 20 kPa, PN 25, with pressure test points	100
  52 796 091	Fc = 20 kPa, PN 25, with pressure test points	125
  52 796 420	Fc = 40 kPa, PN 25, with pressure test points	15/20
  52 796 425	Fc = 40 kPa, PN 25, with pressure test points	25/32
  52 796 440	Fc = 40 kPa, PN 25, with pressure test points	40/50
  52 796 465	Fc = 40 kPa, PN 25, with pressure test points	65
  52 796 480	Fc = 40 kPa, PN 25, with pressure test points	80
  52 796 490	Fc = 40 kPa, PN 25, with pressure test points	100
  52 796 491	Fc = 40 kPa, PN 25, with pressure test points	125
  52 796 320	Fc = 12 kPa, PN 16, with pressure test points	15/20
  52 796 325	Fc = 12 kPa, PN 16, with pressure test points	25/32
  52 796 340	Fc = 12 kPa, PN 16, with pressure test points	40/50
  52 796 365	Fc = 12 kPa, PN 16, with pressure test points	65
  52 796 380	Fc = 12 kPa, PN 16, with pressure test points	80
  52 796 390	Fc = 12 kPa, PN 16, with pressure test points	100
  52 796 391	Fc = 12 kPa, PN 16, with pressure test points	125
  52 796 120	Fc = 20 kPa, PN 16, with pressure test points	15/20
  52 796 125	Fc = 20 kPa, PN 16, with pressure test points	25/32
  52 796 140	Fc = 20 kPa, PN 16, with pressure test points	40/50
  52 796 165	Fc = 20 kPa, PN 16, with pressure test points	65
  52 796 180	Fc = 20 kPa, PN 16, with pressure test points	80
  52 796 190	Fc = 20 kPa, PN 16, with pressure test points	100
  52 796 191	Fc = 20 kPa, PN 16, with pressure test points	125
  52 796 520	Fc = 40 kPa, PN 16, with pressure test points	15/20
  52 796 525	Fc = 40 kPa, PN 16, with pressure test points	25/32
  52 796 540	Fc = 40 kPa, PN 16, with pressure test points	40/50
  52 796 565	Fc = 40 kPa, PN 16, with pressure test points	65
  52 796 580	Fc = 40 kPa, PN 16, with pressure test points	80
  52 796 590	Fc = 40 kPa, PN 16, with pressure test points	100
  52 796 591	Fc = 40 kPa, PN 16, with pressure test points	125
